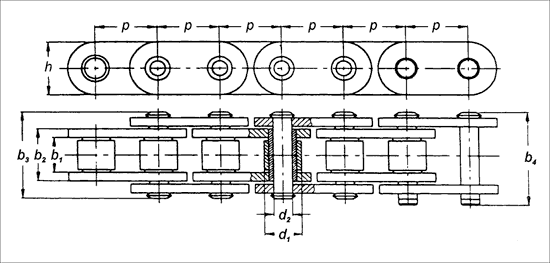

Łańcuchy rolkowe 8
|
|
wg PN-77/M-84168, DIN 8187
ISO
Nr |
p |
d1
max |
d2
max |
b1
max |
b2
max |
b3
max |
b4
max |
h
max |
F
min. |
| |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
kN |
| 1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
| 06 B1GL |
9,525 |
6,35 |
3,28 |
5,72 |
8,53 |
13,50 |
16,80 |
8,20 |
9,00 |
| 08 B1GL |
12,70 |
8,51 |
4,45 |
7,75 |
11,30 |
17,00 |
18,00 |
11,50 |
20,00 |
| 10 B1GL |
15,875 |
10,16 |
5,08 |
9,65 |
13,28 |
19,60 |
23,70 |
14,20 |
27,00 |
| 12 B1GL |
19,05 |
12,07 |
5,72 |
11,68 |
15,62 |
22,70 |
27,30 |
15,50 |
30,00 |
| 16 B1GL |
25,40 |
15,88 |
8,28 |
17,02 |
25,40 |
36,10 |
41,50 |
21,00 |
76,00 |
| 20 B1GL |
31,75 |
19,05 |
10,19 |
19,56 |
29,00 |
43,20 |
49,00 |
25,40 |
110,00 |
| 24 B1GL |
38,10 |
25,40 |
14,63 |
25,40 |
37,92 |
53,40 |
60,00 |
33,00 |
180,00 |
| 28 B1GL |
44,45 |
27,94 |
15,90 |
30,99 |
46,58 |
65,10 |
69,60 |
36,60 |
200,00 |
| 32 B1GL |
50,80 |
29,21 |
17,81 |
30,99 |
45,57 |
66,50 |
73,10 |
41,80 |
250,00 |
| 40 B1GL |
63,50 |
39,37 |
22,89 |
38,10 |
55,75 |
82,60 |
86,30 |
52,00 |
380,00 |
| 48 B1GL |
76,20 |
48,26 |
29,24 |
45,75 |
70,56 |
99,10 |
107,90 |
63,40 |
600,00 |
F - obciążenie zrywające (min.)
|
|
|
|
|
|
|
